Alloy Steel Casting

  • Valve BodyValve Body
    Material: WCC
    Size: 230 × 120 × 80 mm
    Weight: 18.5 kg

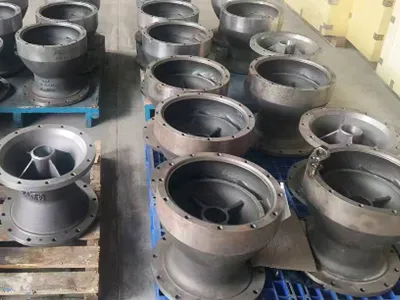

  • Flow Guide HousingFlow Guide Housing
    Material: WCB
    Dimensions: Ø420*390 mm
    Weight: 150 kg

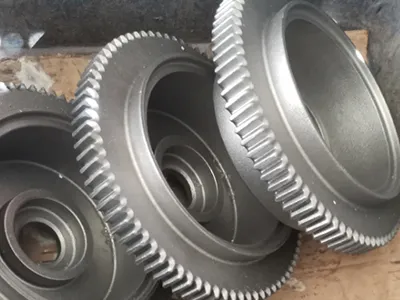

  • Cast GearCast Gear
    Material: 45#
    Dimensions: Ø130*35 mm
    Weight: 1.8 kg

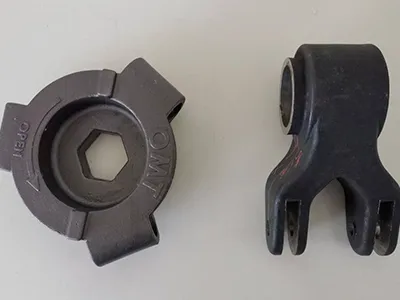

  • ConnectorConnector
    Material: 4130
    Dimensions: 160*140*40 mm
    Weight: 2.8 kg
Contact Us
Material Range
Material Types
  • Types: Carbon steels and low- to medium-alloy steels
  • Material Grades: ASTM A216: WCA, WCB, WCC; AISI: 1018, 1020, 1030, 1045; EN: S235JR, S275JR, S355JR
Specification Range
  • Individual Part Weight: 0.01 kg to 1,500 kg
  • Size Range: 20 mm to 1,500 mm
  • Wall Thickness: Greater than 3 mm
Manufacturing Capabilities

To meet different requirements for alloy steel components in terms of size, weight, and surface finish, we offer two manufacturing processes:

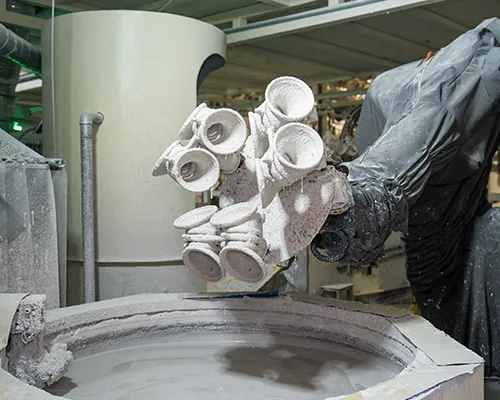

  • Silica Sol Investment Casting/Lost Wax Casting
    This process is suitable for manufacturing components weighing 0.01 kg to 80 kg. It can achieve a surface roughness of Ra 3.2-Ra 6.3 and dimensional accuracy of CT4-CT6.
  • Resin Sand Casting
    This process is suitable for manufacturing components weighing 10 kg to 1,500 kg. It can achieve a surface roughness of Ra 6.3-Ra 12.6 and dimensional accuracy of CT9-CT10.

We operate more than 90 CNC machining machines for the machining of castings with various weights and materials to meet customer drawing specifications and application requirements. Our equipment includes Mazak CNC lathes, 3-axis, 4-axis, and 5-axis machining centers, as well as turn-mill centers, enabling us to meet component dimensional accuracy requirements.

Why Choose HCPC?
Why Choose Huacheng
Huacheng brings over 30 years of metal parts manufacturing experience, supported by integrated casting, forging, and precision machining capabilities. Our manufacturing platform combines silica sol investment casting, sand casting, forging, welding, stamping, and CNC machining, backed by 95 processing machines, advanced inspection equipment, and a quality team of more than 60 inspectors. Certified to ISO 9001, IATF 16949, CE/PED, and other international standards, we manage the entire process from drawing review and process engineering to sample development, production, inspection, and delivery. This makes us well suited for metal parts projects requiring complex geometries, tight tolerances, and multiple manufacturing processes.
