Iron Casting

  • Large GearLarge Gear
    Material: QT400-18
    Dimensions: Ø380*140 mm
    Weight: 27 kg

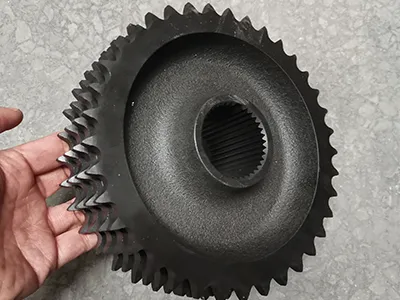

  • SprocketSprocket
    Material: QT400-18
    Dimensions: Ø210*45 mm
    Weight: 13.5 kg

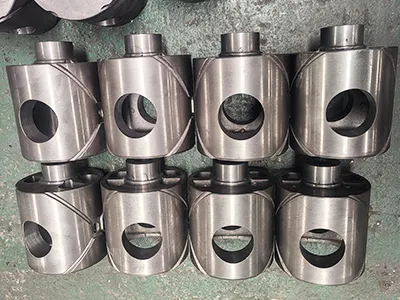

  • PistonPiston
    Material: 60-40-18
    Dimensions: Ø260*430 mm
    Weight: 23 kg

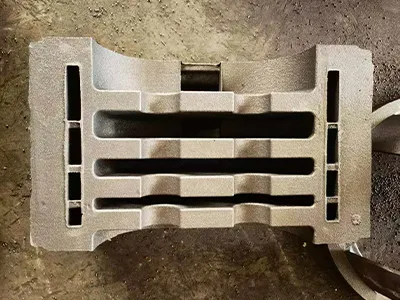

  • Vacuum Pump CasingVacuum Pump Casing
    Material: NO.20
    Dimensions: 420*340*270 mm
    Weight: 46 kg

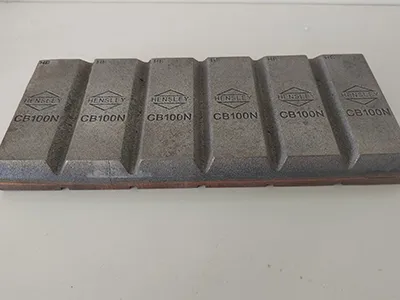

  • Chocky BarChocky Bar
    Material: White Cast Iron
    Dimensions: 180*120*8 mm
    Weight: 2.7 kg

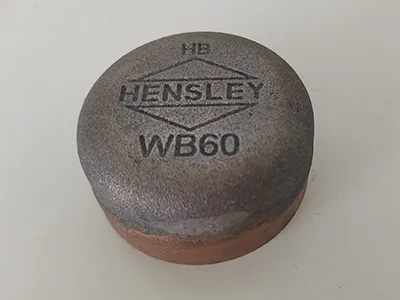

  • Wear ButtonWear Button
    Material: White Cast Iron
    Dimensions: Ø60*35 mm
    Weight: 1.3 kg
Contact Us
Material Range
Material Types
  • Types: Gray iron, ductile iron, and high-chromium cast iron.
  • Material Grades:
    Gray Iron: ASTM A48 Class 20, Class 30, Class 40, and related grades.
    Ductile Iron: ASTM A536 Grades (e.g., 60-40-18, 65-45-12, 70-50-05) and GB/T ISO Grades (e.g., QT400-18, QT500-7), and related grades.
    High-Chromium Cast Iron: Selected high-chromium cast iron grades.
Specification Range
  • Individual Part Weight: 0.1 kg to 300 kg
  • Size Range: 20 mm to 1,500 mm
  • Wall Thickness: Greater than 3 mm
Manufacturing Capabilities

To meet different requirements for cast iron components in terms of size, weight, and surface finish, we generally utilize shell mold casting and resin sand casting processes.

Shell mold casting is well suited for the production of high-volume components, typically weighing between 5 kg and 60 kg. Resin sand casting is generally used for larger and heavier parts. Parts with individual weights exceeding 60 kg are typically manufactured using this process.

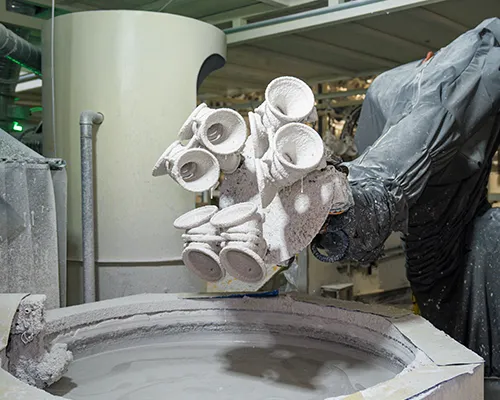

Why Choose HCPC?
Why Choose Huacheng
Huacheng brings over 30 years of metal parts manufacturing experience, supported by integrated casting, forging, and precision machining capabilities. Our manufacturing platform combines silica sol investment casting, sand casting, forging, welding, stamping, and CNC machining, backed by 95 processing machines, advanced inspection equipment, and a quality team of more than 60 inspectors. Certified to ISO 9001, IATF 16949, CE/PED, and other international standards, we manage the entire process from drawing review and process engineering to sample development, production, inspection, and delivery. This makes us well suited for metal parts projects requiring complex geometries, tight tolerances, and multiple manufacturing processes.
