Resin Sand Casting
Resin sand casting is a commonly used casting process in which sand is bonded with resin and a curing agent to produce molds and cores. The process can achieve high-strength molds without the need for drying and is used for casting metal components.

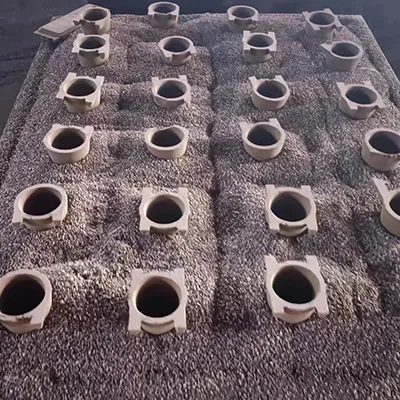

Flask Ready for Pouring

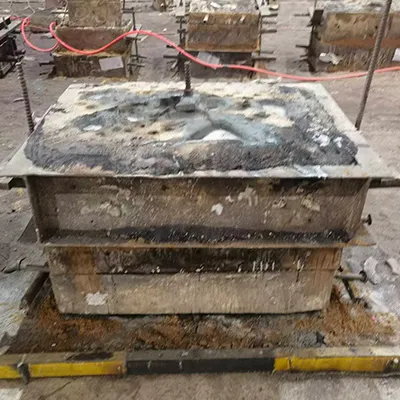

Flask After Pouring

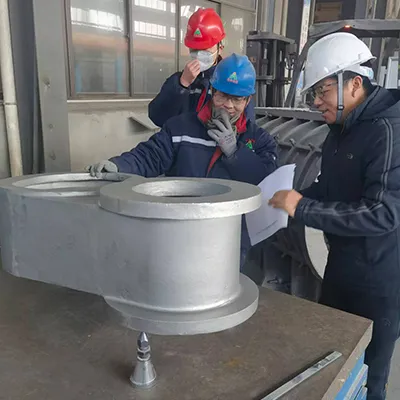

Stainless Steel Valve Body, 260 kg

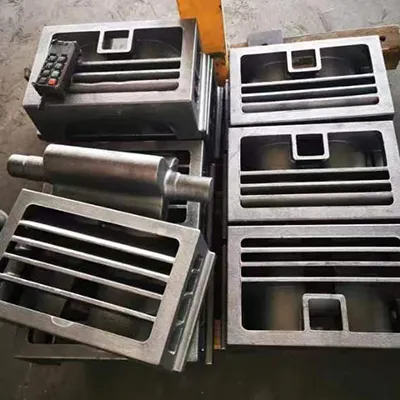

Vacuum Pump Housing, 75 kg
The resin sand casting process is suitable for the production of medium to large castings in single-piece or small-batch quantities. Typical applications include machine tool beds, molds, housings, and engine blocks. In addition, some medium and large water pump components are also manufactured using this process.
- Cast Iron: Gray Iron (HT150, HT200, HT250, etc.)
Ductile Iron (QT400-15, QT500-7, QT600-3, QT700-2, etc.)
Alloy Cast Iron - Cast Steel: Carbon Steel (WCB, WCC, 45#, 20#, ZG230-450, ZG270-500, etc.)
Alloy Steel (40Cr, 42CrMo, ZG20Mn5, etc.) - Stainless Steel: Common stainless steel grades including 304, 316, 410, 420, and 17-4PH
- Aluminum Alloys: Casting aluminum alloys including ZL101, ZL102, ZL104, and ZL111
- Copper Alloys: Aluminum Bronze, Tin Bronze, and Brass
| Part Weight | 50-2,000 kg |
| Minimum Wall Thickness | 8 mm |
| Maximum Section Thickness | Above 100 mm |
| Dimensional Accuracy | CT8-CT10 |
- Raw material preparation →
- sand mixing →
- molding and core making →
- mold assembly →
- melting and pouring →
- cooling →
- shakeout and cleaning →
- grinding and inspection →
- finished goods storage
Resin sand molds are strong, dimensionally accurate, and produce a good casting surface, making the process well suited to large, complex castings. The sand flows well, compacts easily, and hardens evenly, giving the mold high rigidity during pouring with no wall movement. Compared with ordinary clay sand casting, resin sand delivers greater dimensional stability and less distortion, with accuracy typically reaching CT8 to CT10.
- More than 30 years of manufacturing and export experience, with extensive knowledge of international logistics and industry-specific technical standards.
- Full support from tooling design and sample development through to high-volume production, precision machining, and surface treatment.
- A strict ISO 9001 quality management system, backed by CMM (coordinate measuring machine) inspection and non-destructive testing (MT, RT, PT).
